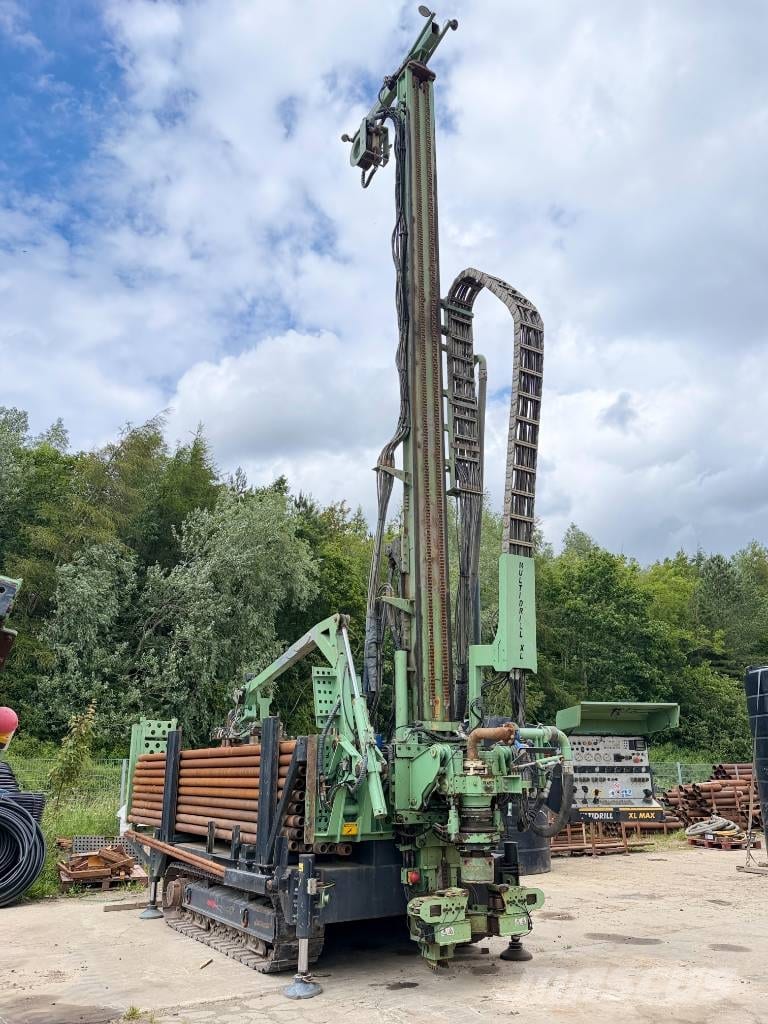

2019 Fraste XL 170 Max drilling rig offered in good working condition with 9,971 operating hours.
A powerful and highly productive drilling rig designed for water well, geothermal and ground investigation applications. Powered by a Caterpillar C4.4 diesel engine and equipped with an automatic rod handling system and automatic greasing system to maximise productivity and minimise operator effort.

Specification
- Year: 2019
- Operating Hours: 9,971
- Caterpillar C4.4 diesel engine
- 129 kW @ 2,200 rpm
- EU Stage IV / EPA Tier 4 Final emissions compliant
- Fraste R12D100 rotary head
- 450 / 900 daNm rotary torque
- 130 / 65 rpm rotary speeds
- Maximum pull-up force: 8,000 daN
- Maximum pull-down force: 6,800 daN
- Rotary head stroke: 7,100 mm
- Rod length: 5,000 mm
- Counterslide stroke: 1,000 mm

Hydraulic Clamp
- Clamping diameter: 60 - 280 mm
- Clamping force: 14,000 daN

Mud Pump
- Caprari MEC MR80 3/2
- Capacity: 3,000 l/min
- Pressure: 11 bar

Machine Data
- Operating weight (without rods): 13,800 daN
- Operating weight (with rods): 16,650 daN
- Hydraulic oil capacity: 340 litres
- Fuel tank capacity: 230 litres
- Fuel reserve: 40 litres
- DEF/AdBlue tank capacity: 19 litres
- 24V electrical system

Included
- 55 x 5m drill rods
- Automatic rod handling system
- Automatic greasing system

A well-maintained machine supplied with a substantial rod package and automated rod handling capability, helping to improve drilling efficiency and reduce manual handling. Ready to go straight to work.
Inspection welcomed.
