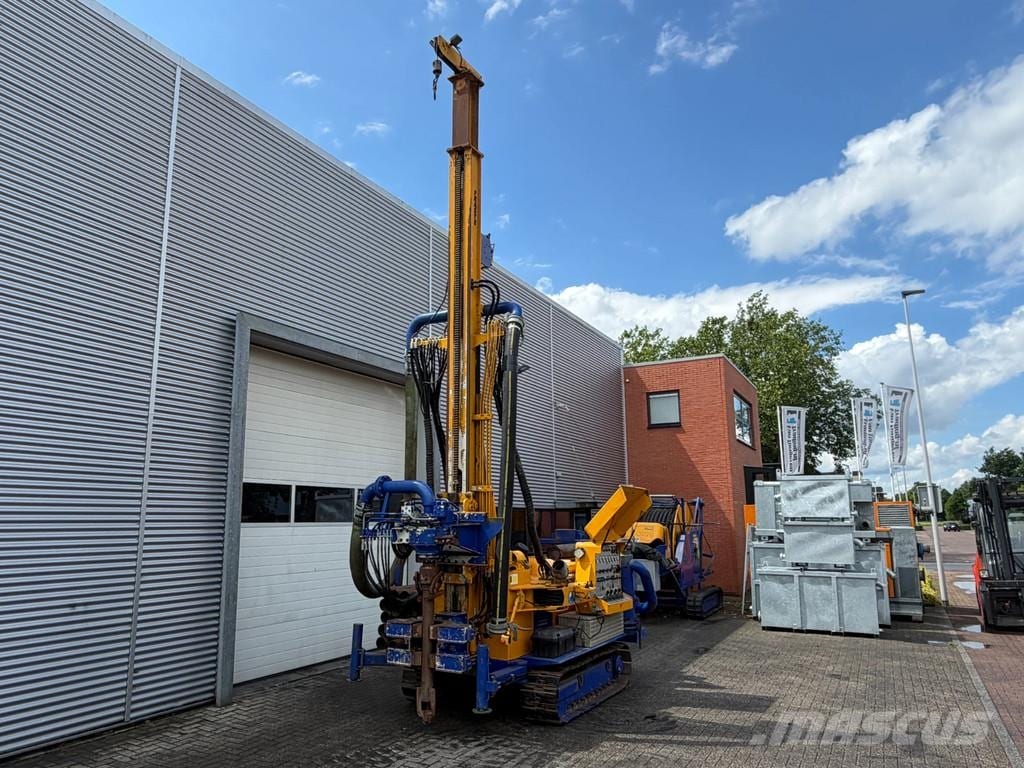

Fraste MD/XL

ENGINE:
type: JOHN DEERE 4045TF275 DIESEL
number of cylinders: 4
displacement: 4.5 L
power: 86 kW

ROTARY HEAD -
type: R12D100
number of hydraulic motors: 2
number of rotary heads: 2
Torque, speed (motors connected in series):-: 410 kgm(*1) - 100 rpm/1'(*1)
Torque, speed (motors connected in parallel): 820 kgm(*2) - 50 rpm/1'(*2)

LIFTING SYSTEM
Lifting capacity (up): 5000 kg
Lifting capacity (down): 3500 kg
Stroke: 3500 mm

CLAMP:
Type: double
Clamp diameter: Ø60÷280 mm
Max. diameter: 280 mm

HYDRAULIC PULL CYLINDER
Number of cylinders: 2
Pulling capacity (up): 20,000 kg

WINCH:
2,000 kg (40 m/1'''')

Pump (suction pump)
BBA - NB140 (350 m3/h, 25 MWC, 105 mm ball passage)

Included with the machine:
20 drill pipes, length 3 m (60 meters total)

= More information =

Type of fuel: Diesel
Year of manufacture: 2006
Model year: 2006
Power: 86 kW (117 HP)
Number of cylinders: 4
GVW: 6.650 kg
Technical condition: very good
Visual appearance: good
Manufacturer: Fraste
